01. Our Trailer

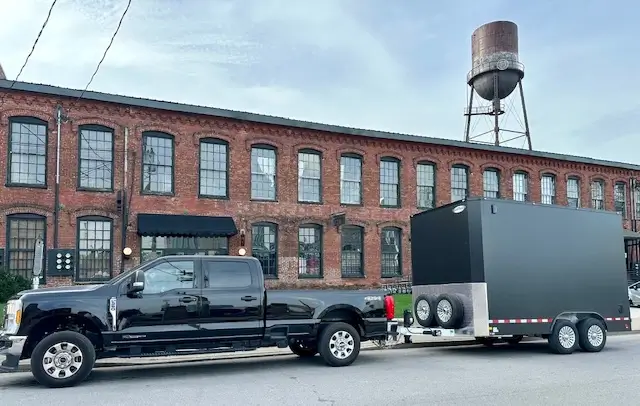

Unleash the Power of CellTech Bus Trailer
Imagine a trailer that adapts to your cargo needs while championing eco-friendly transportation. Meet the
CellTech Bus Trailer, where durability meets future-focused technology. It’s the smart choice for cargo buyers looking for reliability and performance.
Take Control of Your Cargo Transport Today.

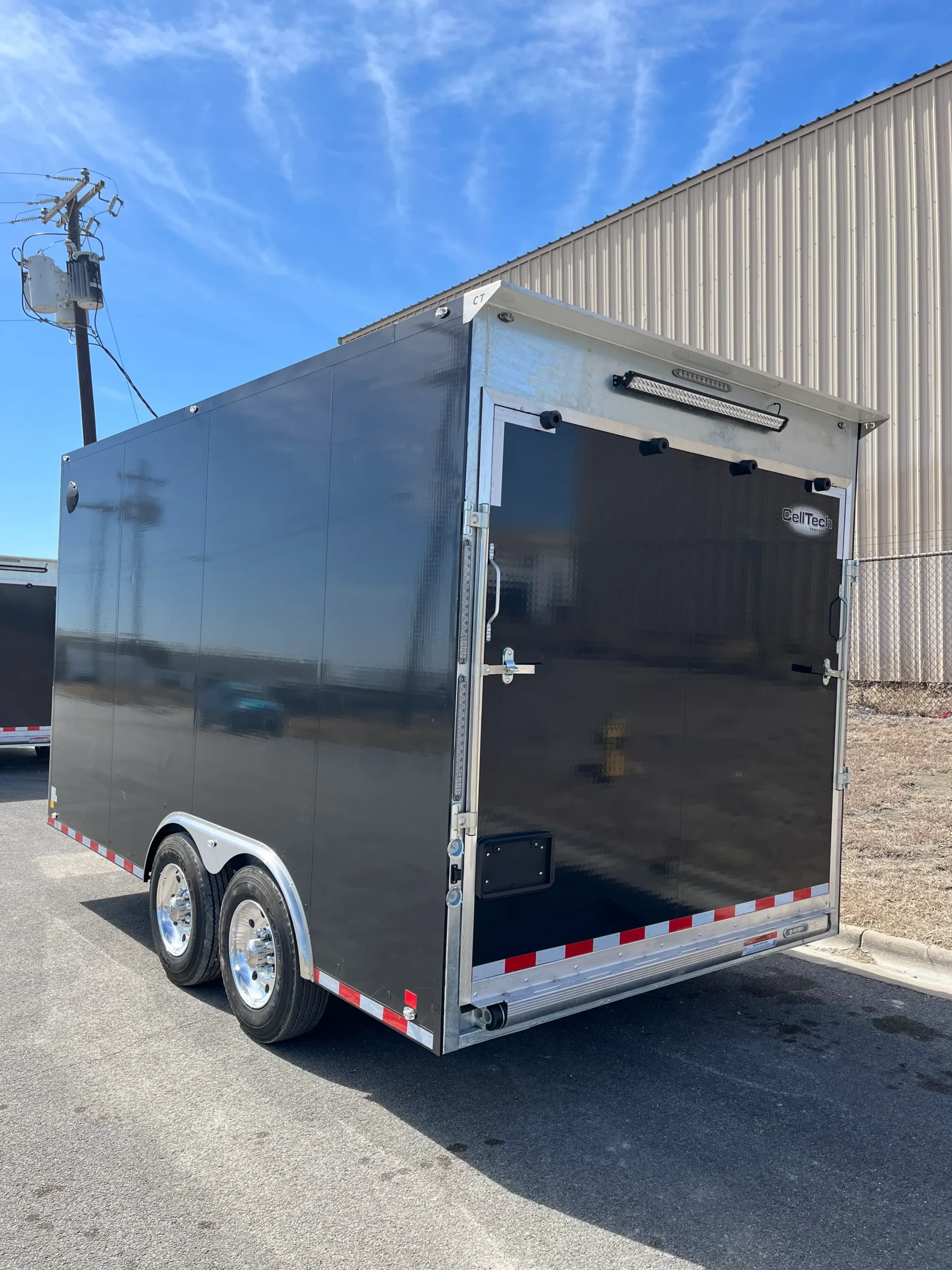

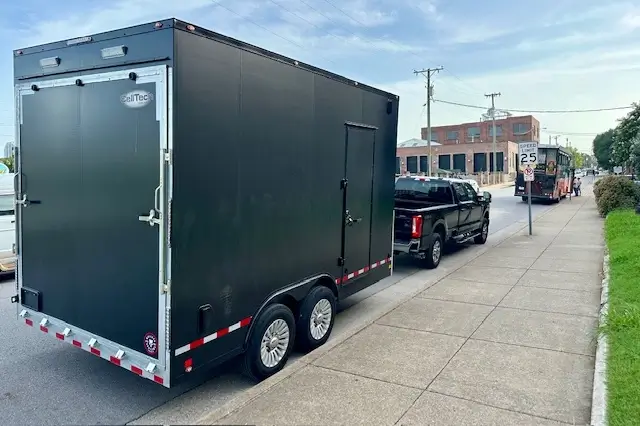

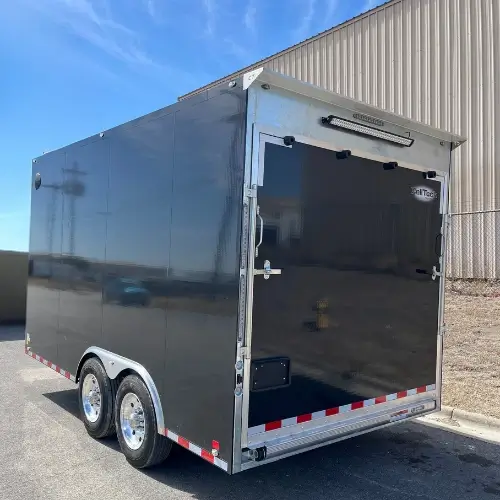

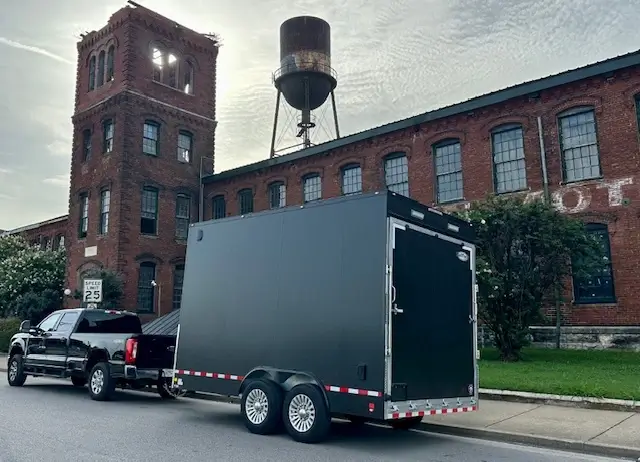

02. CellTech Bus Trailer
Specifications
TRAILER OVERVIEW
- Dimensions: 8.5′ x 15′ x 8′
- Axles: The trailer can be configured with either 8k# or 10k# axles.
- Exterior: The exterior color is black with a mill finish trim.
GENERAL SPECS
- Frame: Hot Dip Galvanized Frame.
- Coupler: Flat Mount Bulldog coupler (25k#).
- Jack: 12k# HD jack with side handle.
- Door: 36″ x 76″ side door.

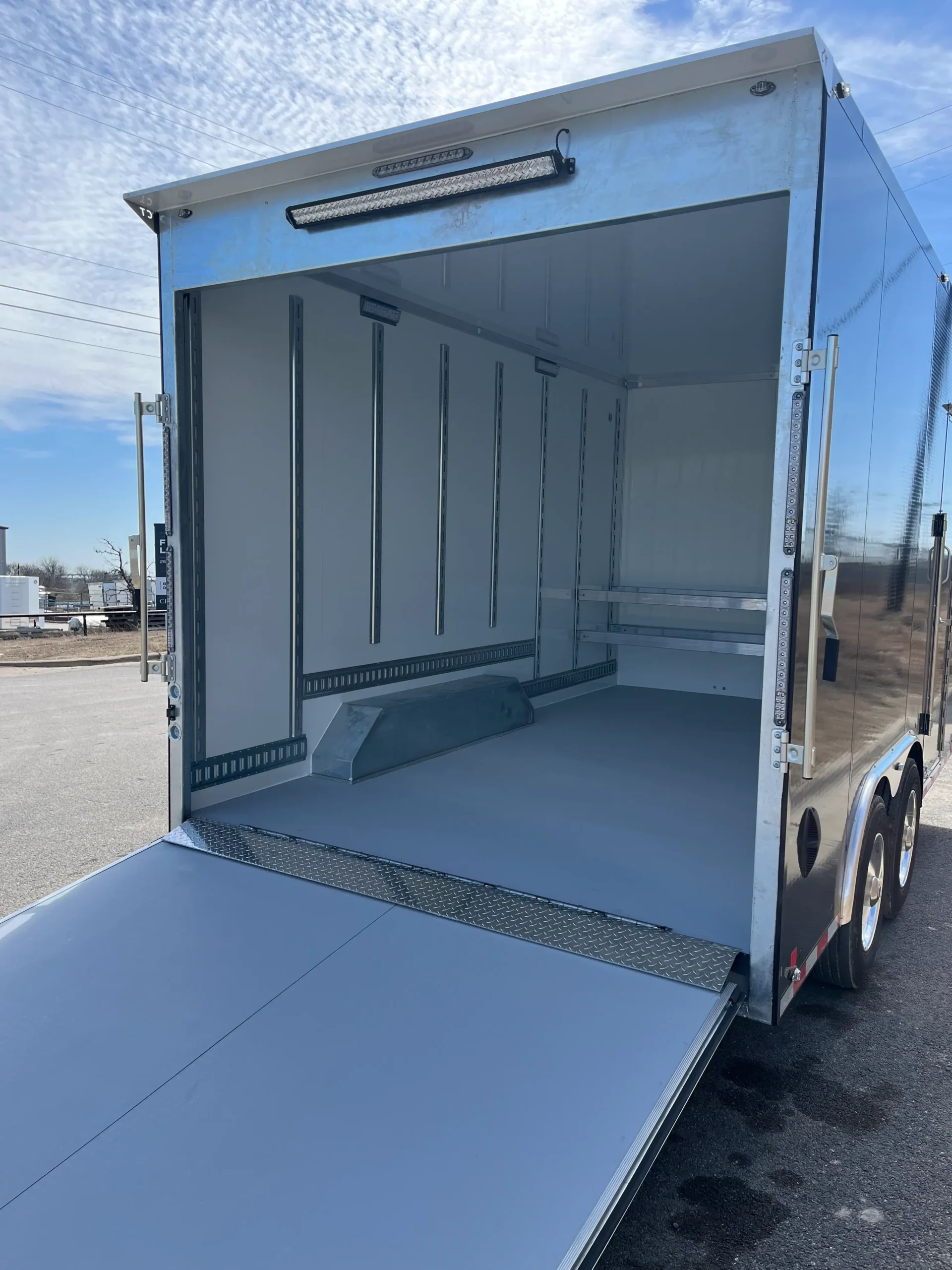

- Ramp: A 7′ ramp height, with a heavy-duty ramp that includes 6 hinges and heavy springs.
AXLES, TIRES & WHEELS
- Axles: 10k# axles with oil bath and 5/8″ studs.
- Tires: 215/75-R17.5 Goodyear tires on aluminum wheels are an available upgrade.

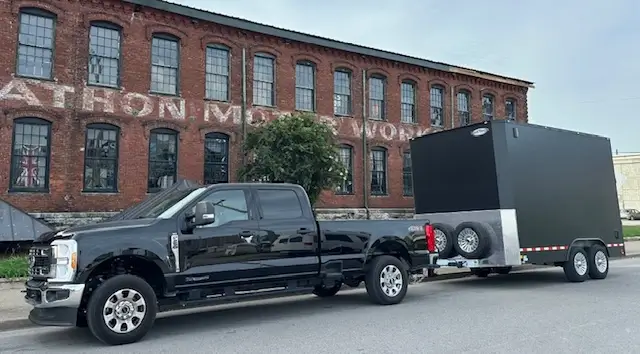

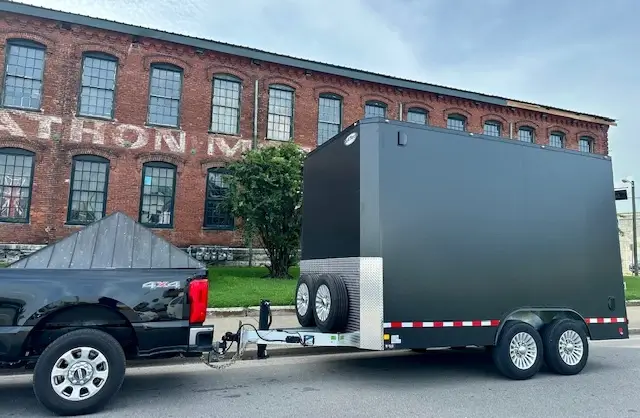

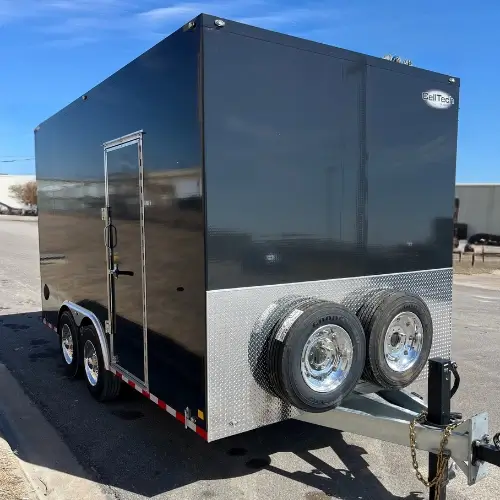

- Spare Tire: A spare tire can be mounted on the front wall, resting on the frame.
LIGHTING
- Extra tail lights (without back-up lights).
- Only lights at the inside rear of the trailer, controlled by a single switch at the rear.
- Extra marker lights every 3′.
- Two extra interior lights above the ramp.
- Extra loading lights.
- Mid-height turn signal 45″ above the ground (fender light).
OTHER FEATURES & ADD-ONS

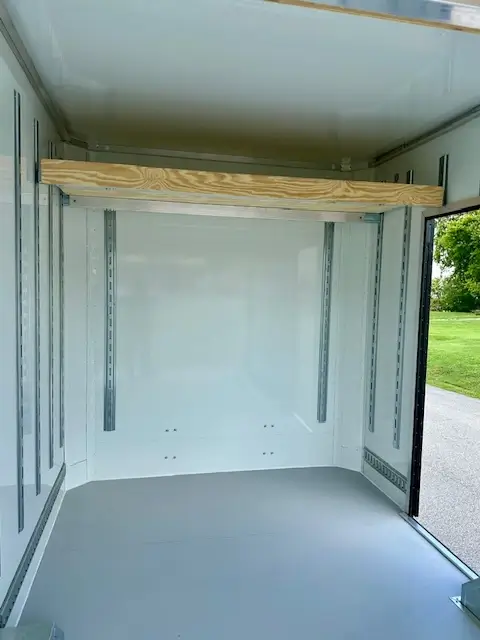

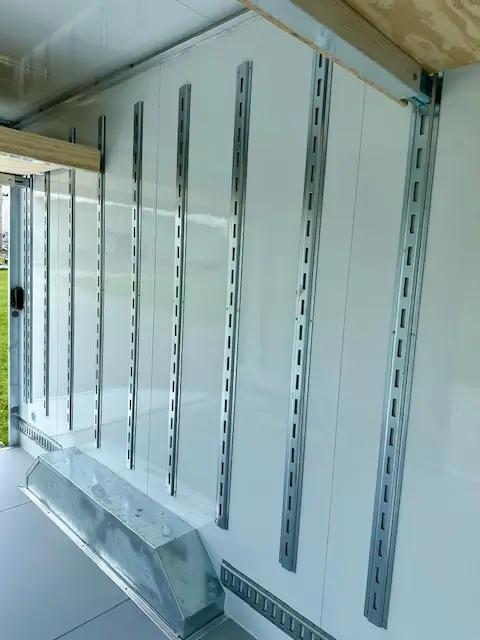

- E-Tracks: Vertical E-tracks can be installed every 2′ and come with four decking beams.
- Locks: Cam locks on the side door, with no keyhole locks.
- Vents: No air vents are included.
- Interior: Floor spray-on is an option.
- Exterior: Ramp and Transition flaps are available.
WARRANTY
- Structural Frame: 5-year warranty
- Dexter Axles: 5-year warranty
- Panels: 10-year CellTech Metals panel delamination warranty
