01. Our Trailer
Your Mobile Workshop

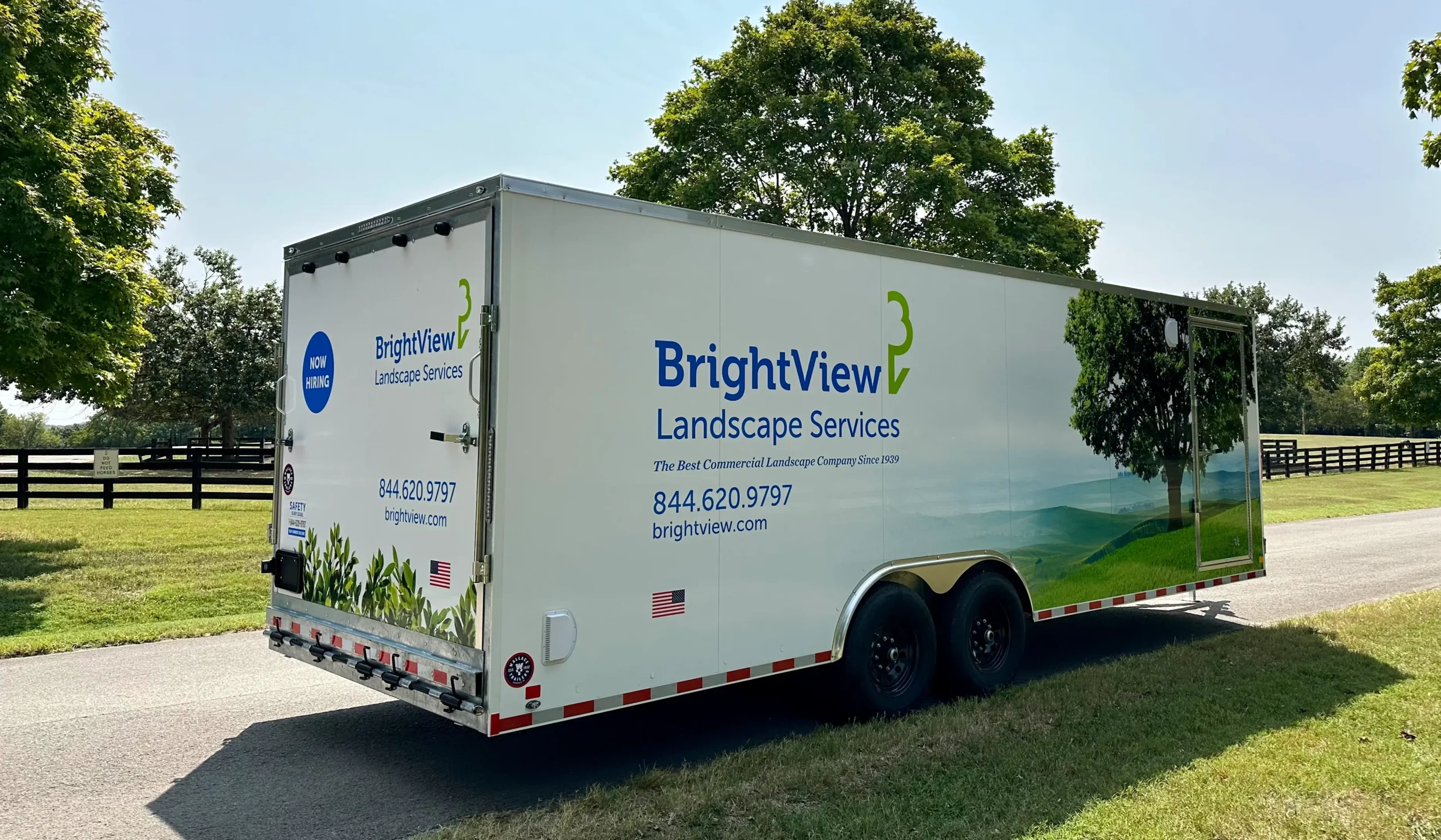

Built for landscaping professionals, our trailers are engineered with unparalleled durability and a flexible design that lets you outfit them for any job. We offer this model in 8.5×16, 8.5×20, and 8.5×24 sizes, providing ample space for all your equipment.
02. CellTech Landscaping Trailer
Specifications
DIMENSIONS & WEIGHT
- Models: 8.5×16, 8.5×20, 8.5×24
- Base Trailer: 8.5x16x7
- Weight: The base trailer weighs 3,680lbs
GENERAL SPECS
- Hot Dip Galvanized Frame
- Adjustable Coupler for 2-5/16″ Ball
- 7k top wind jack
- Extended Tongue
- Side Door: 36″x76″
- Side Vents
- DOT-C2 Tape
AXLES & TIRES
- Our standard axle size is the 7K.
- Two 7k# Torsion axles (Dexter Torflex)
- ST 235/80 R16E 10ply Black Steel tires
- Available with two 5.2# Drop Spring Axles (Dexter) and ST 225/75 R15D 8ply Black Steel tires
ADDED OPTIONS

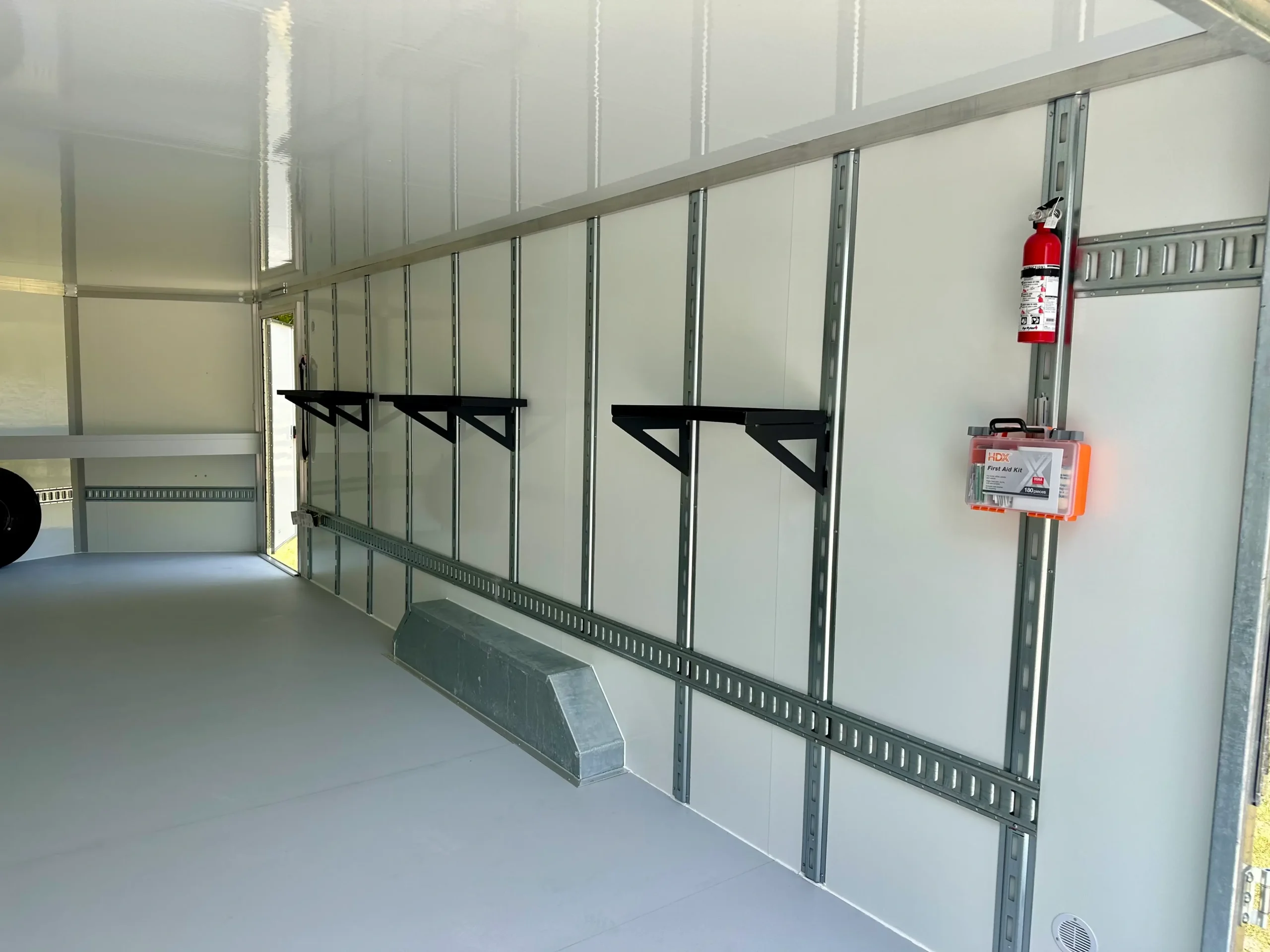

- Horizontal E-Track: One full-length track on both sides above the wheel well
- D-Rings: Eight evenly spaced D-rings on the floor

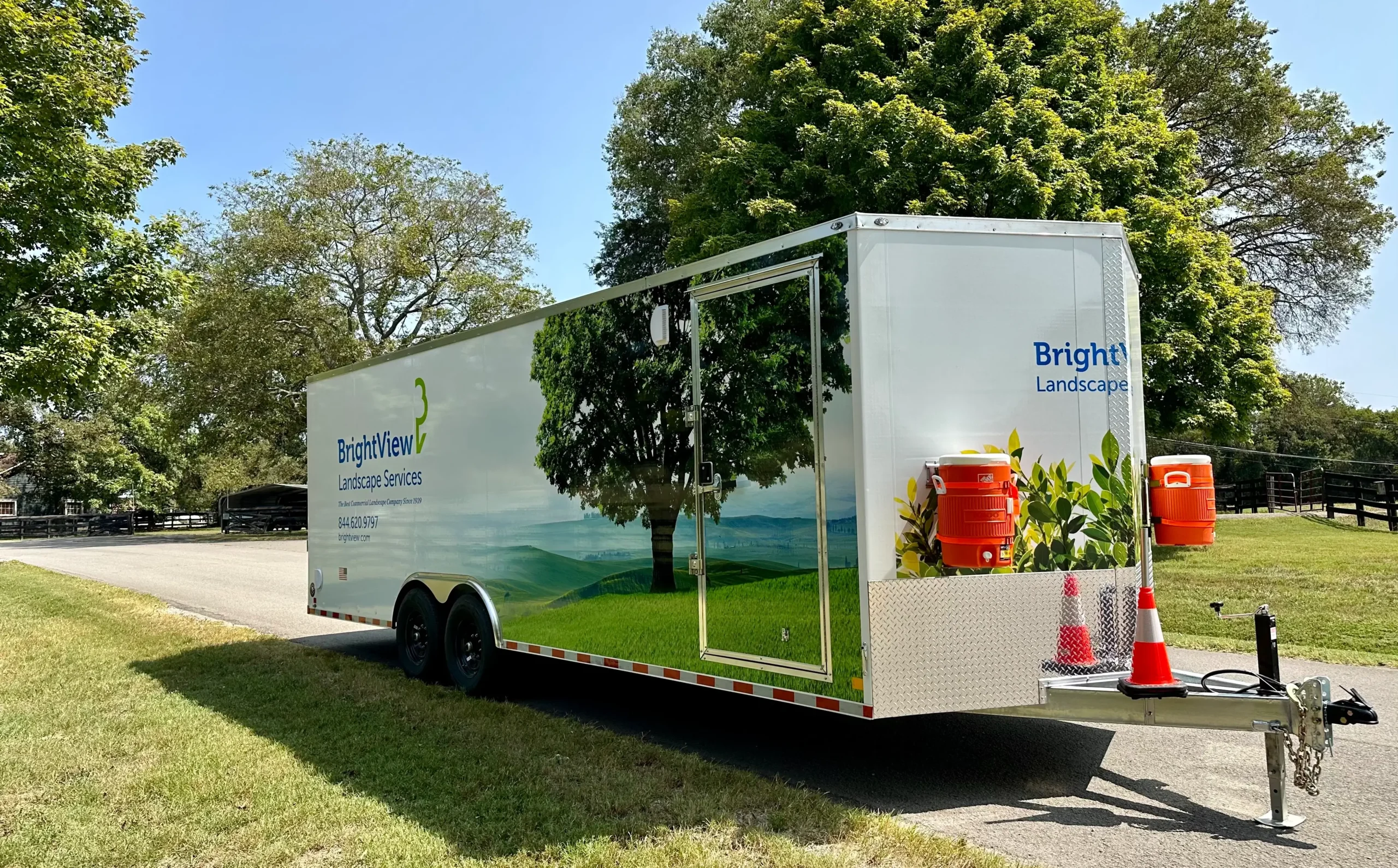

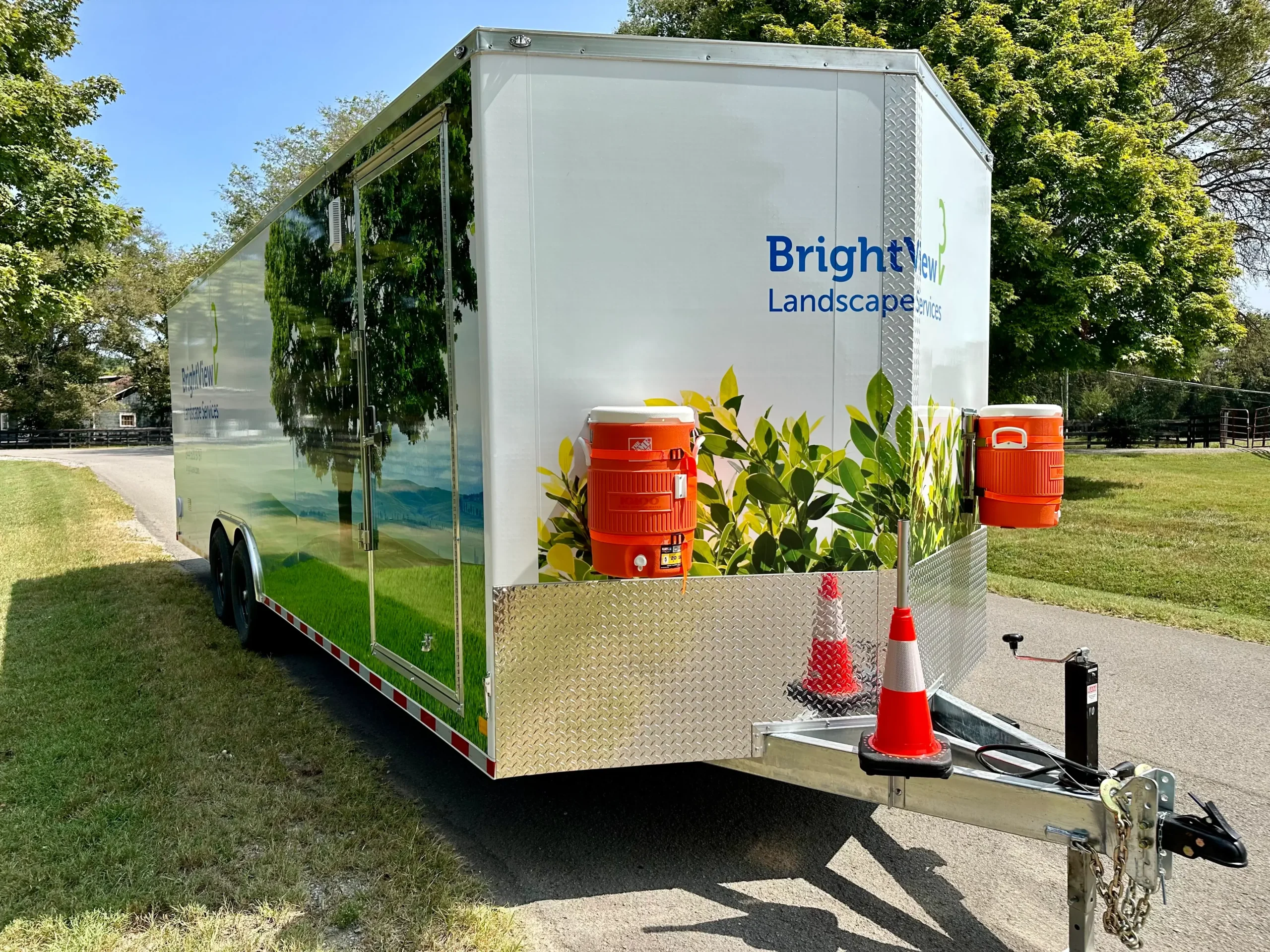

- Water Cooler & Bracket: Two 5-gallon water coolers with brackets installed on the front of the trailer
- Scuff Liner: A reinforced lower portion of the sidewalls that runs from the floor to the E-Track rail
- Remove Side Door: An option to remove the side door entirely
- Side Door Step: A built-in step for the side door

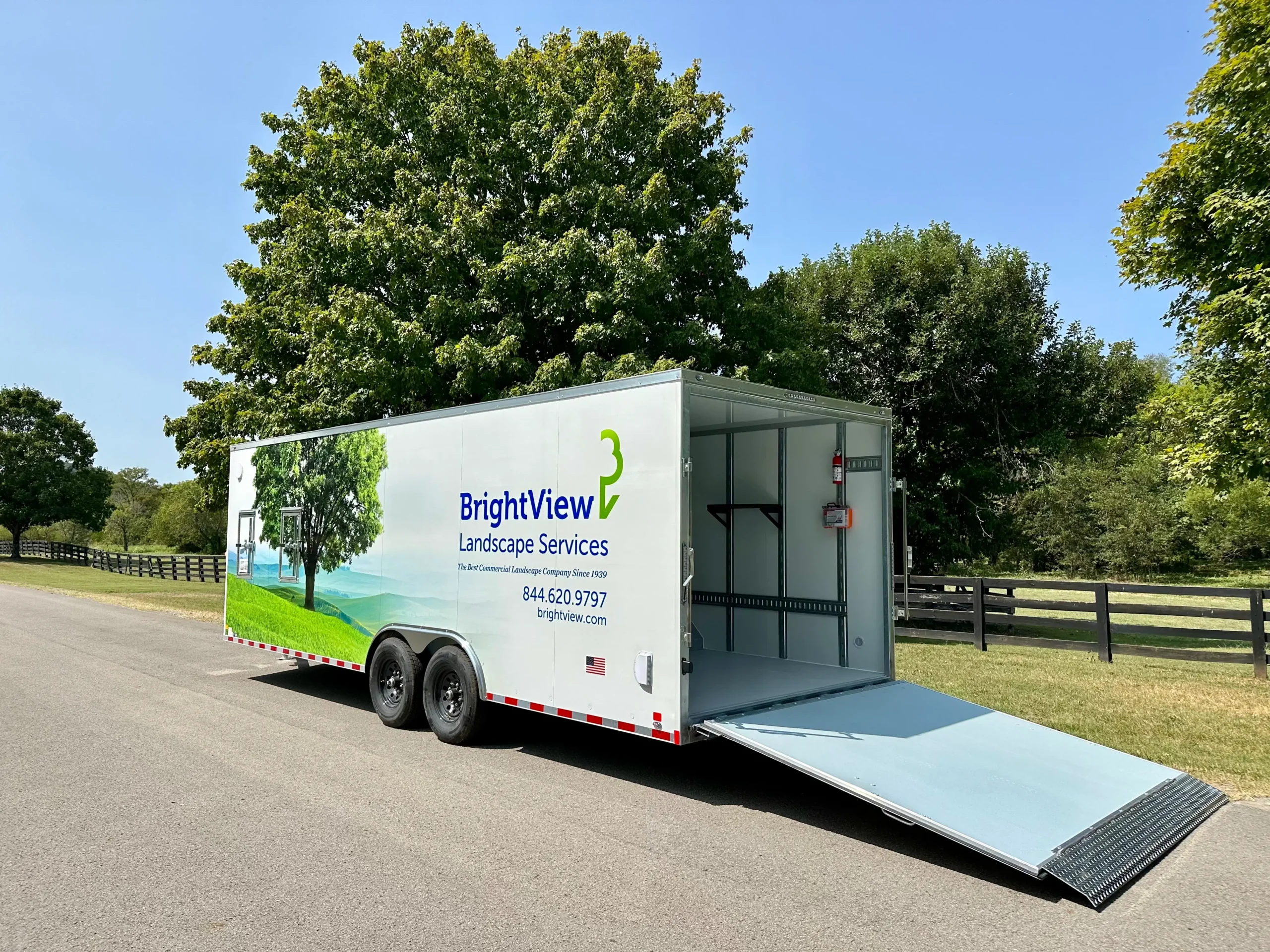

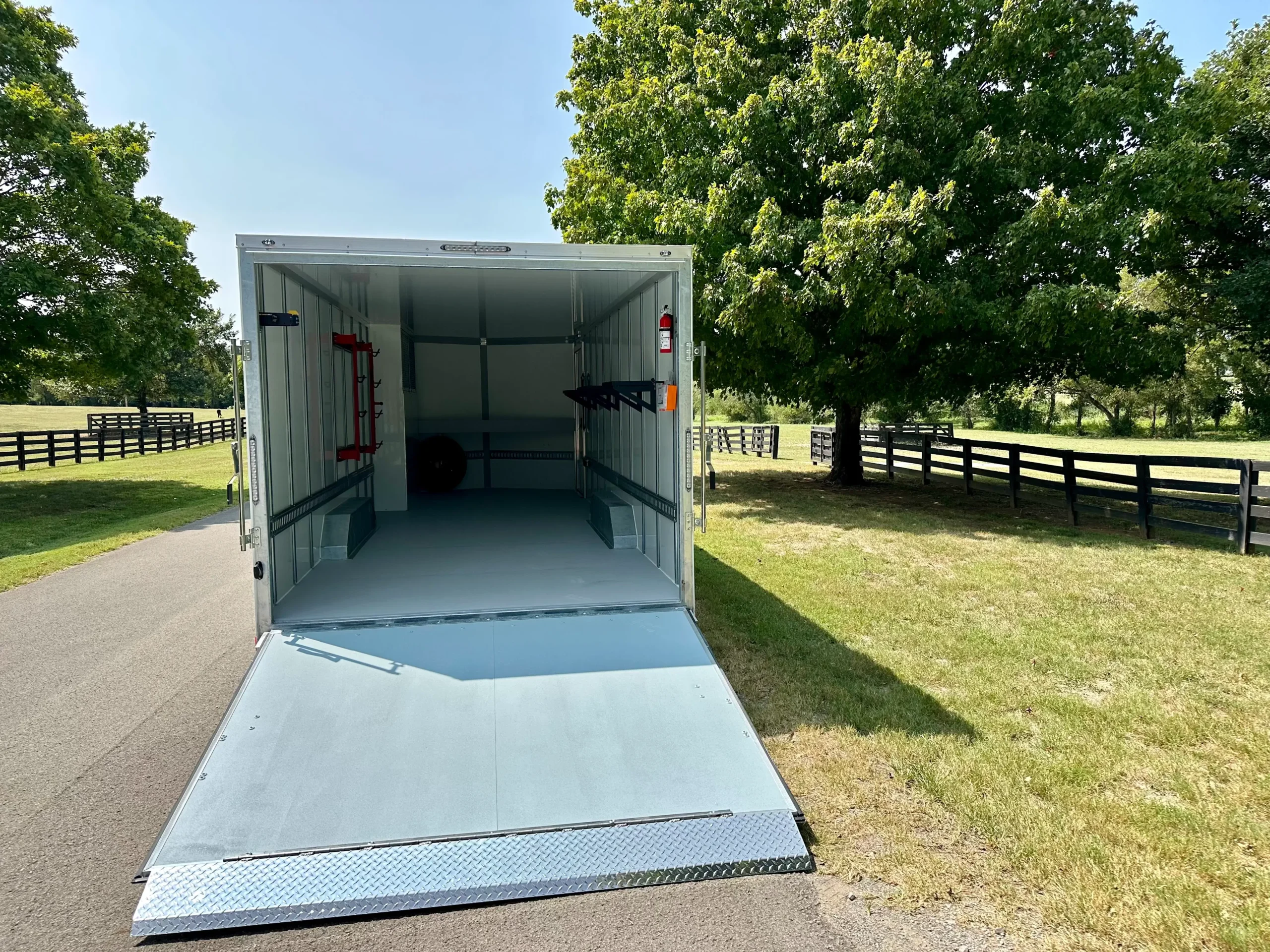

- Ramp Flap: An aluminum extension from the ramp to the ground
- Gas Storage Tank: A built-in, 46-gallon fuel tank with an electric fuel transfer pump and a deep cycle battery

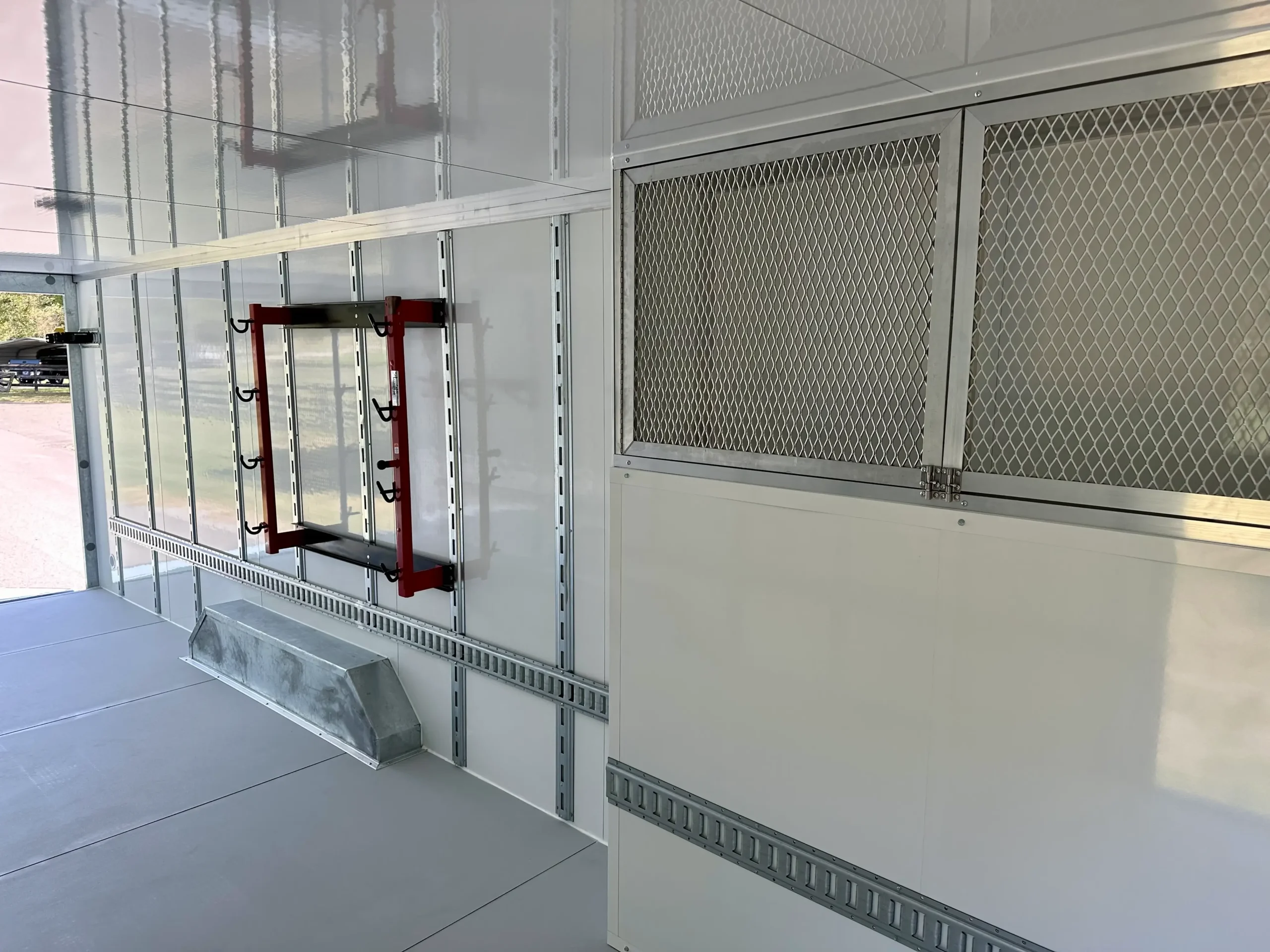

- Tool Racks: Racks that hold 3 trimmer-style units each
- Blower Racks: Racks for individual blowers
- Non-Potable Water Tank: A 25-gallon tank mounted to the front of the trailer
- Line Spool: A line spool
- Air Vents: An additional side vent set

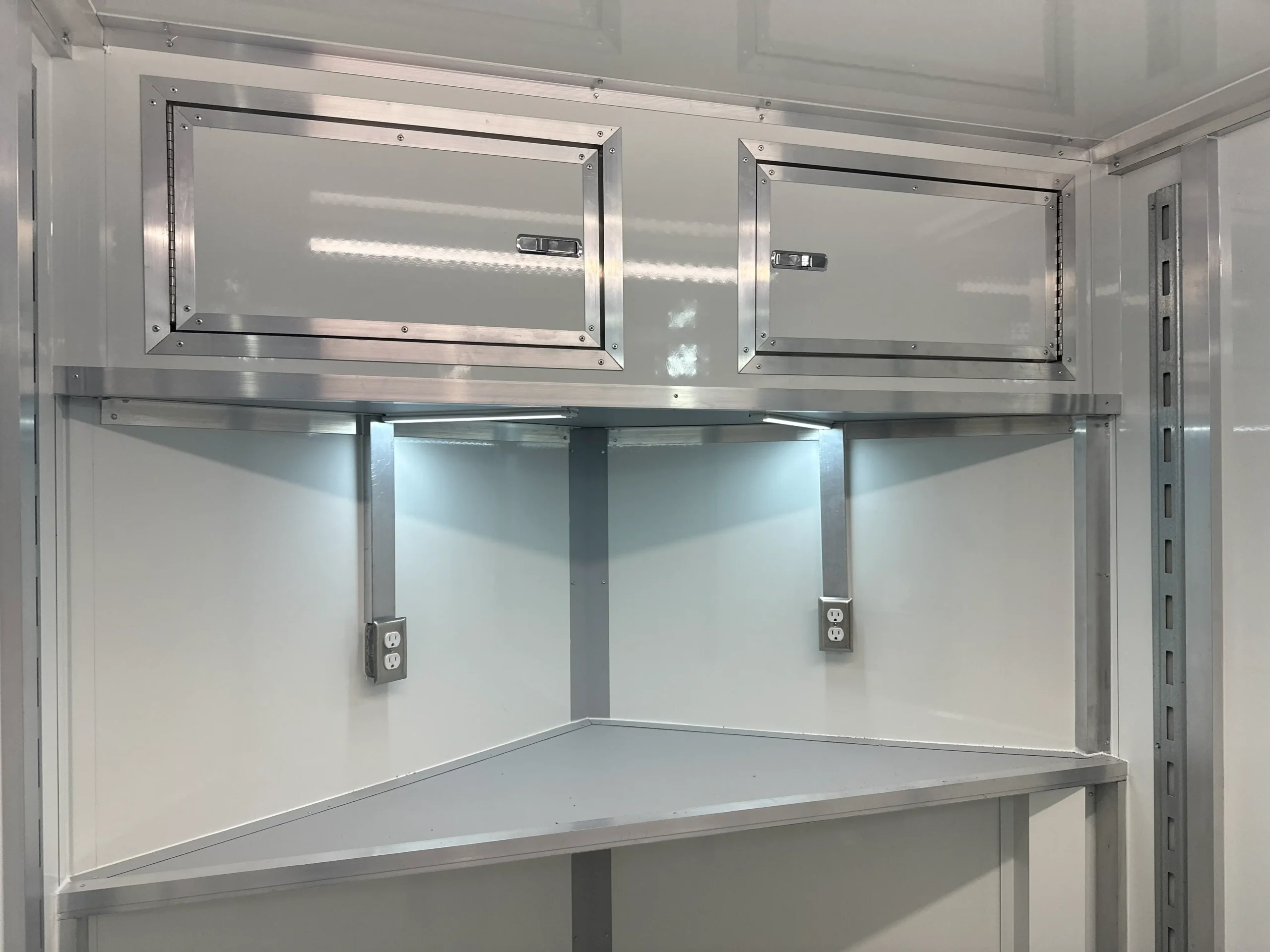

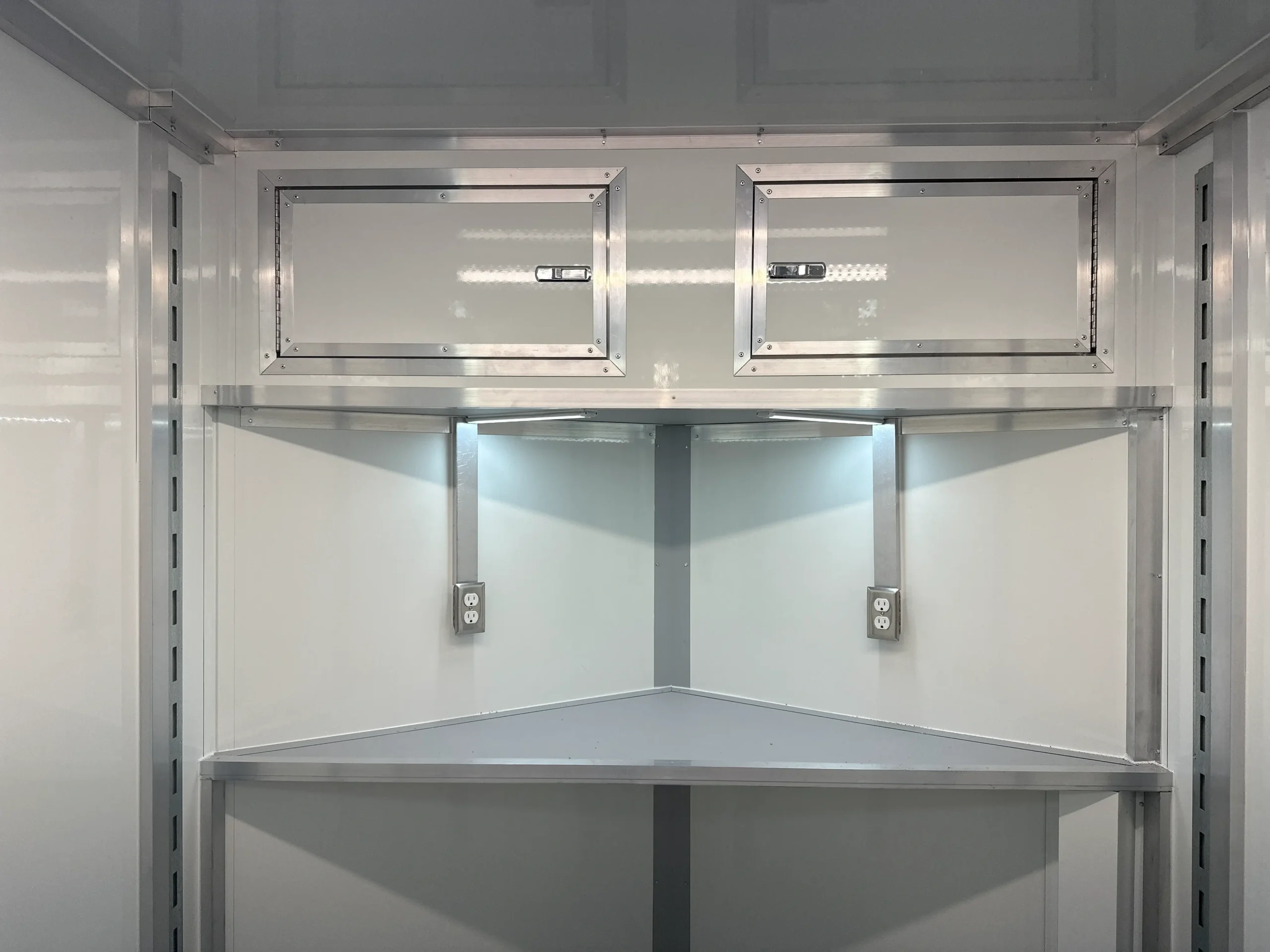

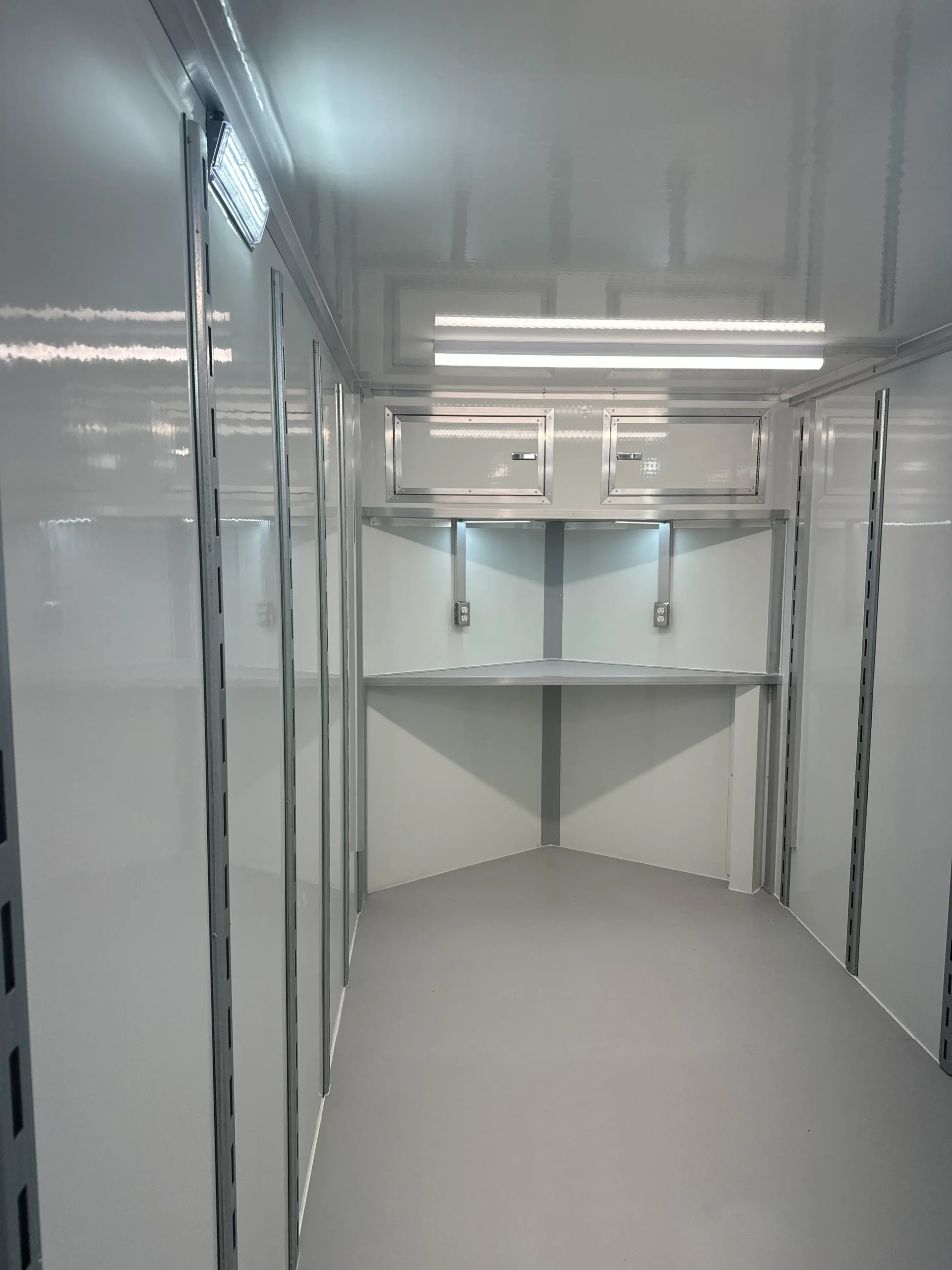

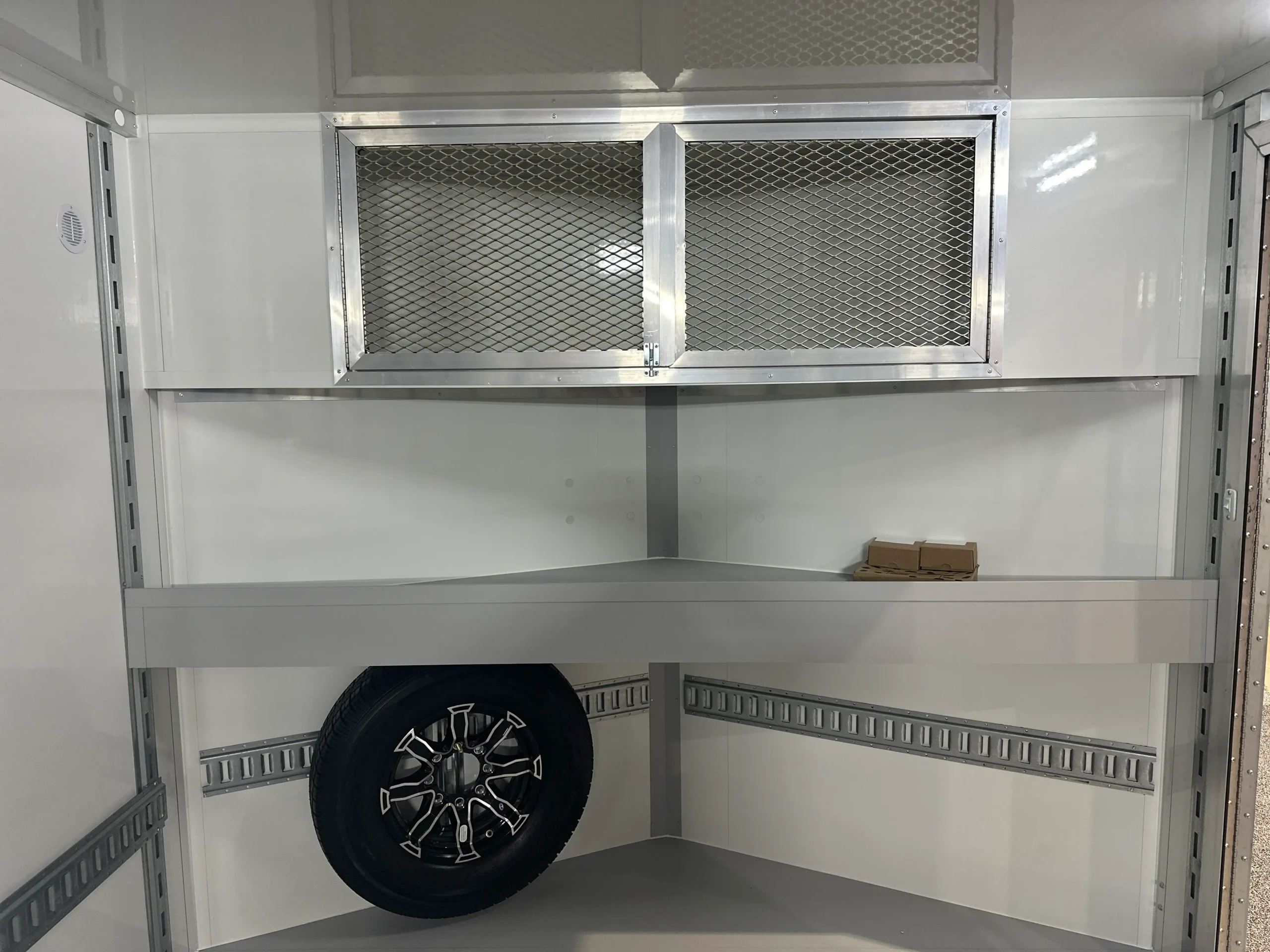

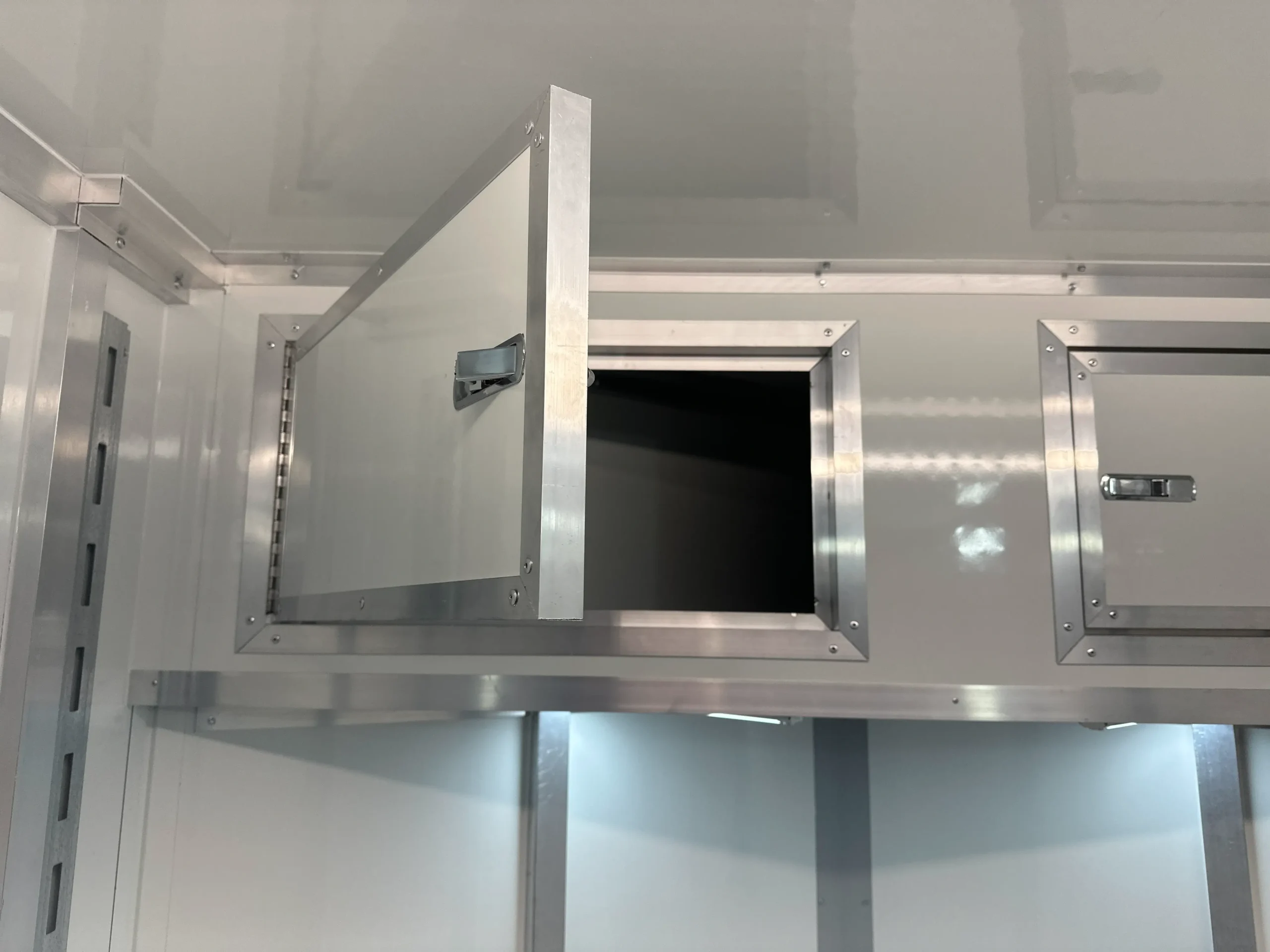

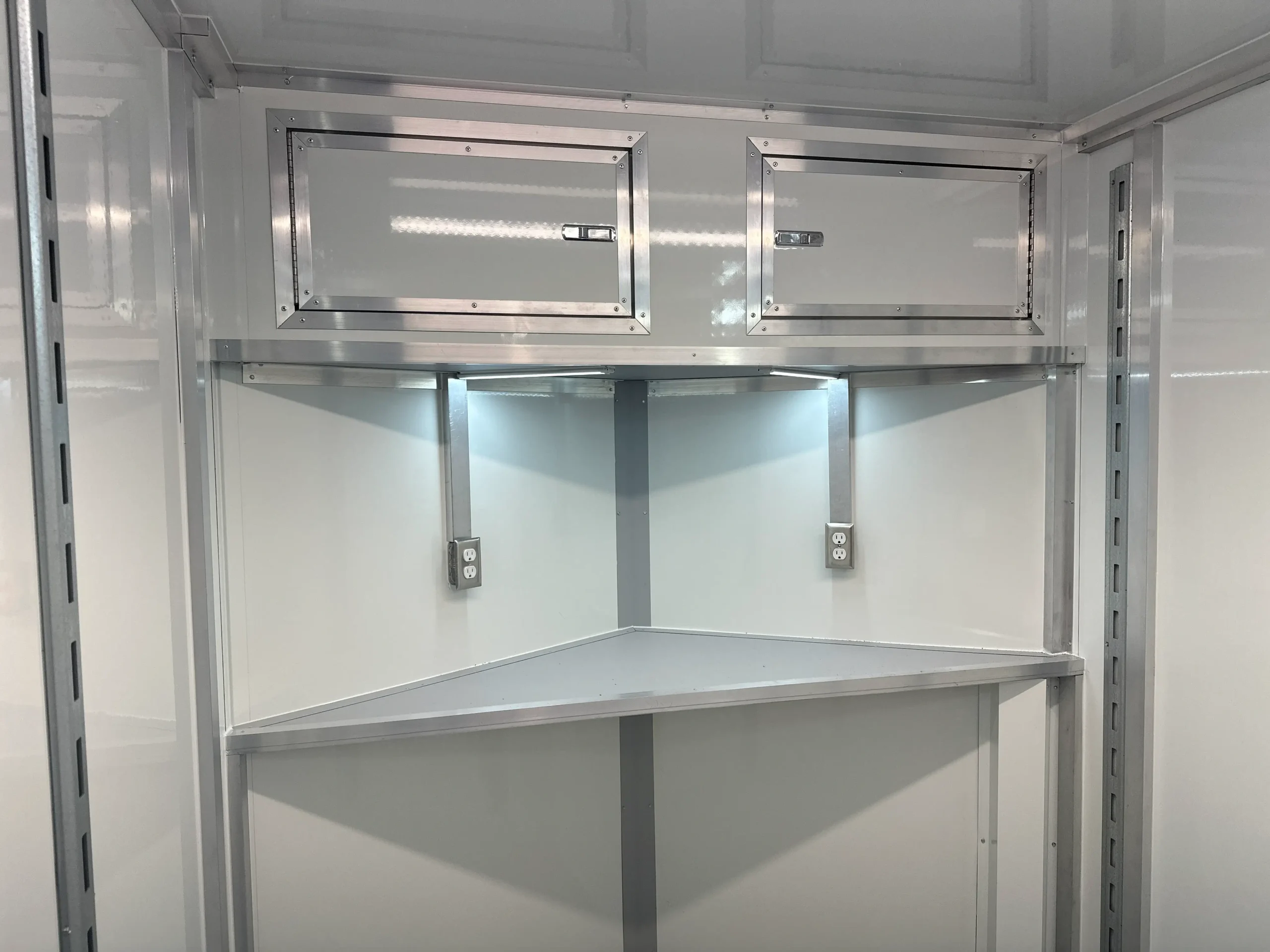

- Shelf and Cabinets Inside: One solid shelf along the front with lockable cabinets above
- Safety Equipment: Includes a fire extinguisher, first aid kit, and wheel chocks with a holder
- Cone Holder: A standard rod-style cone holder mounted to the front of the trailer
- Strobe Lights: Rear lights with built-in LED strobes and a switch inside the trailer
- Rear Door Spring – Safe Assist
- Puck Locks
WARRANTY
- Structural Frame: 5-year warranty
- Dexter Axles: 5-year warranty
- Panels: 10-year CellTech Metals panel delamination warranty
